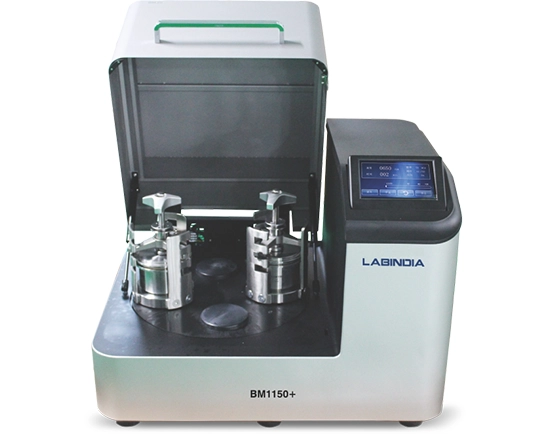

Planetary Ball Mill BM1150+ (Two Grinding Stations)
LABINDIA Planetary Ball Mill BM1150+ (Two Grinding Stations) is suitable for grinding (Dry / Wet) and mixing some soft, hard, brittle and fibrous samples, which are used wherever the highest degree of fineness as customer required, as well as the grinding result is reproducible. Apart from the classical mixing and size reduction processes, the mills also meet all the technical requirements for colloidal grinding.
Planetary Ball Mills are used wherever the highest degree of fineness and meet all the technical requirements for colloidal grinding and have the energy input necessary for mechanical alloying Processes.
Features and Advantages
-
Two Grinding Station platform (12-250 ml Jar Sizes)
-
Advanced 7” LED Colour Industrial Touchscreen design with easy to control the instrument programs and digitally adjustable grinding parameters
-
Dry & Wet grinding Modes.
-
Powerful and Quick Grinding to Nano fineness with Comfortable operation and easy cleaning and Suitable for long-term and continuous operation
-
Automatic direction reversal to avoid agglomerations
-
Wide range of grinding jars and accessories for extensive applications from 12 to 250 ml (Stainless Steel, Zirconium oxide, Tungsten carbide, Agate, Sintered Aluminum Oxide, Sintered Oxide)
-
Various grinding balls with construction of material (Stainless Steel, Zirconium oxide, Tungsten carbide, Agate, Sintered Aluminum Oxide, Sintered Oxide, PTFE) (0.5,1,2,3,5,7, 0,12,15,20,25,30,40 mm)
-
Program setting can control the Speed, operation time, interim grinding with reverse direction, program storage & Cycle Times etc.
-
Storage of 10 sets of SOP’s
-
Cycle Times 1-99 (Digitally programmed)
-
Grinding chamber automatic ventilation system for cooling the grinding jar
-
Efficient and Maintenance free Drive guarantees to maintain constant speed in continuous operation for long time operation or under maximum overload
-
Built-In High power fans automatically provides effective cooling for motors during Grinding
-
Built in technology adoption for Vibration free running during grinding process at high RPM
-
ISO, CE & IP30 certified
