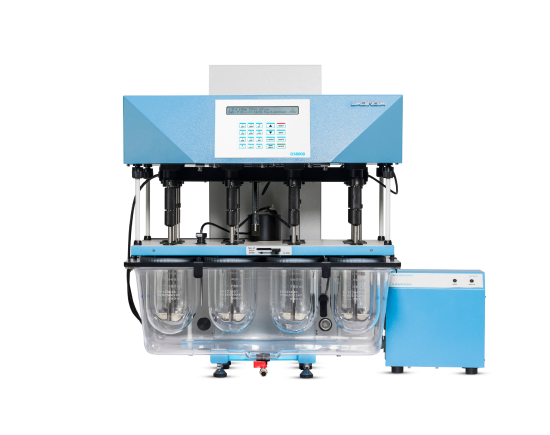

Tablet Dissolution Tester DS 8000 (Basic)


With proven quality and technology the Labindia tablet Dissolution testers are built for simple dissolution testing with budget in mind as well. The tablet dissolution tester DS 8000 (Basic) is uniquely designed to support USP 1,2,5 & 6 and is compliant with currently USP, BP, EP, IP specifications.

The high head dissolution testing apparatus can be configured for 6,7 or 8 vessel configuration and the moulded water bath which has an outlet for easy cleaning. The external water circulator with heater is vibration free and ensures a constant temperature throughout the dissolution test run.

This makes the Dissolution tester DS 8000 a perfect entry level model for dissolution testing.

Standard Features of Dissolution Tester DS 8000 (Basic)

  • User-friendly, complies with current USP , IP ,BP, & EP and ASTM specifications.

  • Alphanumeric polyester soft keys for keyboard.

  • External vibration free Water Circulator for uniform water circulation with audible and low water level alarm.

  • Mono shaft design with automatic adjustment for 25 mm depth setting with easy changeover between Apparatus I & II eliminates routine height validation as per USP.

  • Paddles, Baskets and Vessels are laser marked with serial numbers for traceability.

  • Tablet dispenser (Optional) drops 6 dosage form at single instance.

  • The conical shape low evaporation recovery lids reduces media loss during long run.

  • Facility to monitor Vessel temp, with DTS Technology (Digital Temperature Sensor)

Software

  • Alphanumeric entries of Sample Name, Sample Number and Identification Number for authentication.

  • Built-in Real Time Clock (RTC) for date and time on display and on printout.

  • Daily Auto Incremented Run Number and factory entered CUSTOMER NAME with Instrument Serial Number on report printouts

  • Non-Volatile memory storage of 15 methods with parameters.

  • Two tier password protection of Admin and User

  • Reports can be obtained even after Resetting / Power off / Power failure conditions.

  • Error indication helps user to trace the problem.

  • Audible indication for ready state of instrument.

Regulatory Compliance

  • DS 8000 (Basic) meets all requirements relating to validation, qualification and calibration.

  • Appropriate qualification documents (I.Q. / O.Q.) can be supplied with the instrument.

Additional Features

  • 6 Vessels Temperature Monitoring System automatically measures and records the temperature of individual vessel at specified sample time points.

  • Validation Software for RPM & Temperature.

  • Recovery Test facility to study 100% Drug Dissolution.

Watch a Video here:

Tablet Dissolution Tester Basic #dissolutiontester #dissolution #DissolutionTestApparatus – YouTube

Visit the LabIndia website for more information:

Dissolution Apparatus Manufacturer in India | Dissolution Tester Price (labindia-analytical.com)
