Grinder

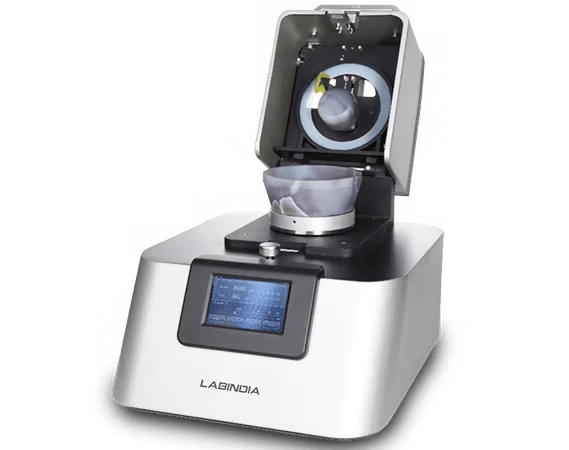

Mortar Grinder HG1100 (Touchscreen)

Mortar Grinder HG1100 is used to grind, homogenize and mix a wide range of samples with dry/wet or cryogenic condition, which can grind hard, soft, brittle and pasty samples. HG 1100 can be used for samples like Soils, chemical products, medicinal herbs, yeast cell, cocoa, food, grain, oil, fruit, salt, slag, silicate, glass, ceramic and cement clinker. It is easy and safe to operate.

Standard Features of Mortar Grinder HG1100

  • Grinding, Mixing and Triturating of powders, Paste, Suspension.

  • Built-In 5" Touchscreen Display

  • Adding samples through the filling opening during the operation.

  • A variety of Grinding tools available to meet all applications (Hardened Steel, Stainless Steel, Tungsten Carbide, Agate, Sintered Aluminum Oxide and Zirconium Oxide)

  • A variety of scraper materials available to meet all applications (Polyurethane, PTFE, Beech wood)

  • Feed size < = 15mm

  • Grinding Chamber Volume 700 ml & batch quantity 10-200m1

  • Final Fineness < = 5µm

  • Digital time operation setting 01 — 999min

  • Freely adjustable Digital pause time setting range 01-99 min. (Ensures mixing of two different tablets or dosages during the run)

  • Digitally adjustable speed setting 50-130rpm (Avoids overloading of motor)

  • 9 Standard Operating Procedures (SOPs) memory

  • Program up to 99 Cycles

  • External helix - screw locking device for safety

  • Overload protection and auto switch-off during overload

Visit the LabIndia website for more information:

Top Laboratory Grinding Mill | Mortar Grinder HG1100 (labindia-analytical.com)

Knife Mill KM1100

The Knife Mill KM1100 is used to process the soft, medium-hard, brittle and fibrous sample, special for high water, oil or fat content sample.KM 1100 can be used in applications like Agriculture, Biology, Medicine, Food etc.

Standard Features of Knife Mill KM1100

  • Perfect for Size Reduction, Homogenization & Mixing in sample, with cutting size reduction principle

  • Feed Size less than 50mm & Final fineness achievable less than 320µm

  • Setting of grinding time from 1 sec to 10 min.

  • 1 Lit Grinding Containers & with reduction lids down 300&500ml (MOC: Autoclavable Plastic, Glass, Stainless Steel and PP)

  • Batch quantity 50-700ml & with reduction lids down 300&500ml

  • Gravity lid with overflow channel to homogenize samples with high water content

  • Varieties of Knives (Stainless Steel, Stainless steel with serrated blades for grinding meat & Titanium alloy for grinding without heavy metal contamination)

  • Number of blades can be used at a time up to 2 Powerful Motor with adjustable speed 1.1KW (2000-15000RPM)

  • Simple quick start operation

  • Three modes of operation (Interval mode, Reverse mode and Press-and-Play mode)

  • Overload protection and safety lock design

Visit the LabIndia website for more information:

Knife Mill KM1100 (labindia-analytical.com)
