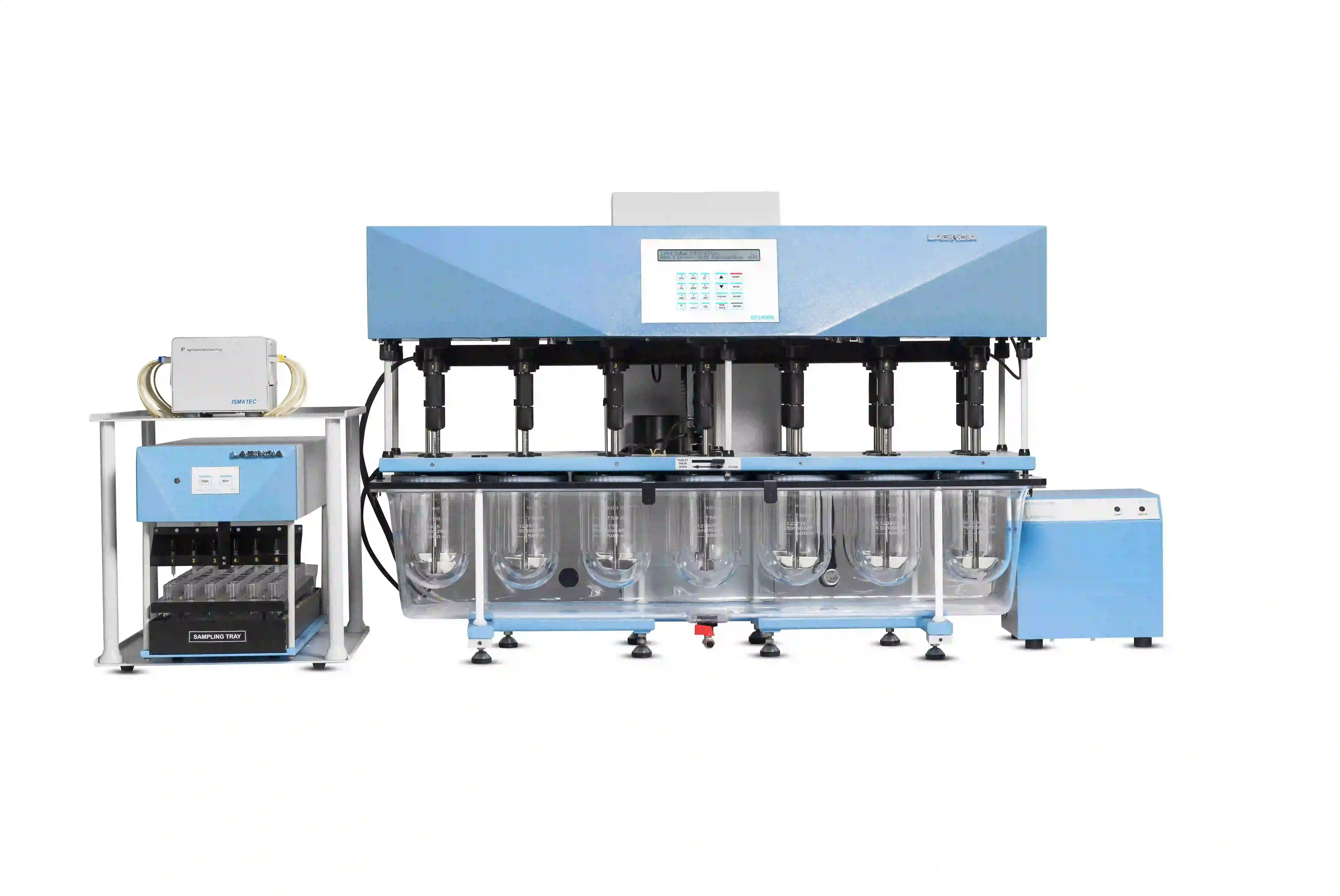

Tablet Dissolution Tester DS 14000 with Peristaltic Pump

Standard Features of Dissolution Tester DS 14000 with Peristaltic Pump

  • User-friendly, complies with current USP, IP, BP, IP & EP and ASTM specifications.

  • Alphanumeric polyester soft keys for keyboard.

  • External vibration free Water Circulator for uniform water circulation with audible and low water level alarm.

  • Mono shaft design with automatic adjustment for 25 mm depth setting with easy changeover between Apparatus I & II eliminates routine height validation as per USP.

  • Paddles, Baskets and Vessels are laser marked with serial numbers for traceability.

  • Tablet dispenser drops 12 dosage form at single instance.

  • The conical shape low evaporation recovery lids reduces media loss during long run.

  • Facility to monitor Vessel temp, with DTS Technology (Digital Temperature Sensor)

Additional Features

  • Facility to RINSE the entire sampling path in between sampling time points to reduce contamination & carryover

  • Specially developed cleaning system to clean the entire sampling path after each run.

  • Facilities to perform the dissolution test using two buffers (Buffer changing) to cater the application of enteric coating tablets.

  • Recovery Test facility to study 100% Drug Dissolution.

  • Split & on-time interval

Intelligent Sampling System

  • Automated sampling as per USP Specifications. Sampling tubes are lowered in the media only at the time of sampling and withdrawn immediately after sampling, thus no par t of the assembly contributes motion, agitation or vibration.

  • Sampling tubes are accurately moved to the USP sampling position i.e. a zone mid way between the surface of media and the top of paddle/basket parameters, not less than 1 cm from the vessels wall as selected in the method.

  • 12 bowls temperature monitoring system automatically measures and records the temperature of individual vessel at specified sample points.

Peristaltic Pump

  • Imported Pump with click-n-go Cassette design for volume accuracy.

  • Fixed length pump tubings with stopper for sampling volume accuracy.

  • Volume calibration through software.

  • Tygon pump tubings for SLS Compatibility with long life.

  • Imported Pump with Planetary drive for very accurate pumping.

  • High repeatability on all Channels.

  • 24 actively driven stainless steel rollers.

Sample Collection

  • 12 X 6 X 2 sets of samples can be collected. For more sampling interval, 24 X 6 collection trays are available.

  • Option of 1.5ml & 2ml HPLC vials is available.

  • Over Head Design for electronic safety and fail safe operation.

  • Sensor to locate proper position of tray with alar m facility for collection of sample Wide mouth vial to minimise SLS spill over problem due to foaming characteristics

  • Easy positioning with respect to vials or test tube tray for easy changeover


  • Alphanumeric entries of Sample Name, Sample Number and Identification Number for authentication.

  • Built-in Real Time Clock (RTC) for date and time on display and on printout.

  • Daily Auto Incremented Run Number and factory entered CUSTOMER NAME with Instrument Serial Number on report printouts

  • Non-Volatile memory storage methods with parameters.

  • Two tier password protection of Admin and User

  • Reports can be obtained even after Resetting / Power off / Power failure conditions.

  • Error indication helps user to trace the problem.

  • Audible indication for ready state of instrument.

Regulatory Compliance

  • DS 14000 with Peristaltic Pump meets all requirements relating to validation, qualification and calibration.

  • Appropriate qualification documents (I.Q. / O.Q.) can be supplied with the instrument.
