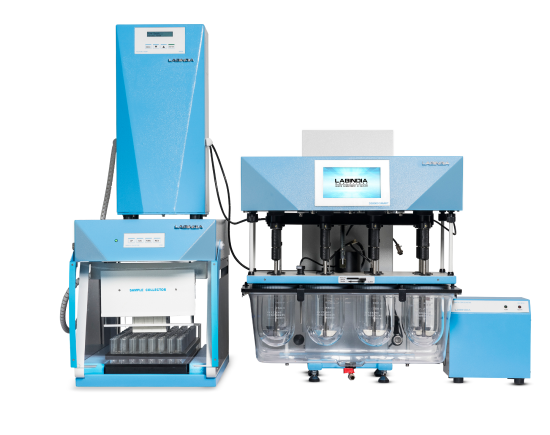

The Labindia dissolution tester DS 8000 Smart with piston pump is a prefect semi automatic solution to carry out precise and efficient drug dissolution testing. Dissolution tester DS 8000 has 6 vessel temperature monitoring system that automatically measures and records the temperature of individual vessel at specified sample points.
With the high pressure Piston pump system rinsing is done between samples for reducing carryover issues. DTS technology for temperature allows to monitor dissolution vessel temperature accurately along with a external temperature sensor.
Having the 21 CFR Part 11 compliant software it is easy to search and print all Audit Trail activities. Multi level roles for users with password protection, expiry and complexity. PDF reports can be generated through the dissolution test system. This makes the Labindia dissolution tester the complete allrounder dissolution system available in the market.
Standard Features of Dissolution Tester DS 8000 SMART with Piston Pump
-
Advance Micro – controller (Arm Core )User-friendly, complies with current USP , IP ,BP & EP and ASTM specifications.
-
Mono shaft design with easy changeover between Apparatus I & II eliminates routine height validation as per USP.
-
Automatic stirrer 25 mm depth positioning (as per USP)
-
Vessels, paddles and Basket are Laser marked with serial numbers for traceability
-
Automated Tablet dispenser drops 6 dosage form at single instance
-
The conical shape low evaporation recover y lids reduces media loss during long run.
-
Easy placement and locking of vessels, the Easealign system allows the vessels to simply slide into the place (Bionet Locking).
-
Facility to monitor Vessel temp ,with an external Digital Temperature Sensor
-
7’’ Colour High resolution Display with touch screen interface
-
External vibration free flow water circulator
21 CFR Part 11 Compliance
-
Audit Trail for all activities with search facility, report generation and printing.
-
200 and more User ID’s with alphanumeric entries of user name, password and role based privileges selection.
-
Multi-level roles with password protection,expiry & complexity
-
User authentication is per formed for each and every operation done by user.
-
PDF report file can be created through print.
-
Electronic signature functionality.
-
Data Backup and Restore facility available.
-
LAN (Ethernet) connectivity for Data backup on Network shared folder
Pump System - PP 08
-
Piston Pump - PP 08 is Microprocessor controlled and is ideal for sample withdrawal from 6 channels.
-
The Piston Pump - PP 08 with inert ceramic rotor overcomes all absorption issues.
-
Accuracy better than ± 2%(@10mL)
-
Rinse function for reducing carryover issues.
-
Surfactant Media Compatibility.
Regulatory Compliance
-
DS 8000 SMART with Piston Pump meets all requirements relating to validation, qualification and calibration.
-
Appropriate qualification documents (I.Q. / O.Q.) can be supplied with the instrument.
Additional Features
-
Built in validation Software
-
Facility to RINSE the entire sampling path in between sampling time - point to eliminate contamination & carryover
-
Specially developed cleaning system to clean the entire sampling path after each run
-
Facilities to perform the dissolution test using two buffers (Buffer changing) to cater the application of enteric coating tablets.
-
Recovery Test facility to study 100% Drug Dissolution.
-
Split & on-time interval
Intelligent Sampling System
-
Automated sampling as per USP Specifications. Sampling tubes are lowered in the media only at the time of sampling and withdrawn immediately after sampling, thus no part of the assembly contributes motion, agitation or vibration.
-
Sampling tubes are accurately moved to the USP sampling position i.e. a zone mid way between the sur face of media and the top of paddle/basket parameters, not less than 1 cm from the vessels wall as selected in the method.
-
6 vessels temperature monitoring system automatically measures & records the temperature of individual vessel at specified sample points.
-
Inert PTFE Fluoropolymer Carrier Tubing
Sample Collection
-
18 X 8 sets of samples can be collected. For more sampling interval, 24 X 8 collection trays are available.
-
Option of 1.5ml & 2ml HPLC vials 24*8 tray is available.
-
Wide mouth vial to minimise SLS spillover problem due to foaming Characteristics
-
Auto recognition sensor for tray with alarm facility for collection sample
-
Easy positioning with respect to vials or test tube tray for easy changeover
Software
-
QWERTY Keyword for entries of Sample Name, Sample Number and Identification Number for authentication.
-
Built-in Real Time Clock (RTC) for date and time on display and on printout.
-
Factory entered CUSTOMER NAME with Instrument Serial Number on report printouts
-
Non-Volatile memory storage of 15 methods with parameters.
