Tablet Hardness Tester

TH 12 SMART

Tablet Hardness Tester TH12 Smart is equipped with 7” High-resolution Display with Capacitive Touch Screen along with User interactive software for ease of operation with protection against invalid entries. The Tablet Hardness Tester – (TH 12 SMART) can perform an automatic run of up to 1-100 tablets, in addition to this, the run can be resumed even if it is interrupted by any power failure. Pause & Resume feature gives the user time to adjust the the tablets.

TH 12 Smart tablet hardness tester has a multilevel passing limit to detect the values of Hardness, Length / Diameter, Thickness and Width with marking T1, T2, T3 for displaying the out of limit values. A complete 21 CFR part 11 complaint system with facilities like Audit trail, E Signature, multilevel password etc is inbuilt. For the purpose of safety, user authentication is performed for every operation done by the user of this hardness tester.

LABINDIA reserve the right to change specification without notice as part of its continuous product development.

Standard Features of Tablet Hardness Tester - (TH 12 SMART)

• 7” High resolution Display with Capacitive Touch Screen & User interactive software for ease of operation with protection against invalid entries.

• Facility for date and time display with Built-in Real Time Clock (RTC)

• 12 Position Carousal for Automatic measurement of tablet parameters

• Thickness, Length / Diameter, Weight, Width &. Hardness

• Automatic run can be performed continuously up to 1-100 tablets. Run can be restarted incase of of interruption due to power failure

• Alphanumeric entries of Sample Name and Identification/Batch Number for authentication

• Daily Auto Incremented Run Number for authentication of each test Run

• Factory entered CUSTOMER NAME, Equipment ID with Instrument Serial Number on report

• Process Stage,Press Details, comment entry with Identification / Batch No for additional information

• Multilevel Passing Limit for detected values of Hardness, Length / Diameter, Thickness and Width with markingT1,T2,T3 for out of limit values

• Calibration for Hardness, Thickness & Length / Diameter/Width :

• Hardness Calibration & Verification - 3 Point.

• Thickness Calibration & Verification - 3 Point.

• Length/Diameter/Width Calibration with 2 point & verification with 3 point.

• Calibration reminder function

• Quick RUN for Width, Thickness, Length/Diameter and Hardness measurement or All.

• The built in Sweeping blades cleans the tablet path for removal of broken pieces, debris & dust.

• Tablet Auto centering for length measurement as per tablet width / diameter.

• Groove for better positioning of oblong shape tablets.

• ‘Run’ halt feature for out of limit value with buzzer alarm & display message indication.

• ‘Pause’ / ‘Resume’ feature added while measuring Hardness to make a proper alignment of the tablet.

21 CFR Part 11 Compliance

• Audit Trail for all activities with search facility, report generation and printing

• 200 & more User ID’s with alphanumeric entries of user name, password and role based privileges selection

• Multi-level roles with password protection, expiry and complexity

• User authentication is performed for each and every operation done by user

• PDF report file can be created through print

• USB Printing eliminates the need of serial port to connect with instrument.

• The user can take printout on any local or network printer as well

• Electronic signature functionality

• Data Backup & Restore facility available

• LAN (Ethernet) connectivity for Data backup on Network shared folder

Watch a Video here:

Tablet Friability Tester - Labindia Analytical #friabilitytester #tabletfriabilitytester - YouTube

Visit the LabIndia website for more information:

Tablet Friability Tester | Friability Test Apparatus | Labindia Analytical (labindia-analytical.com)

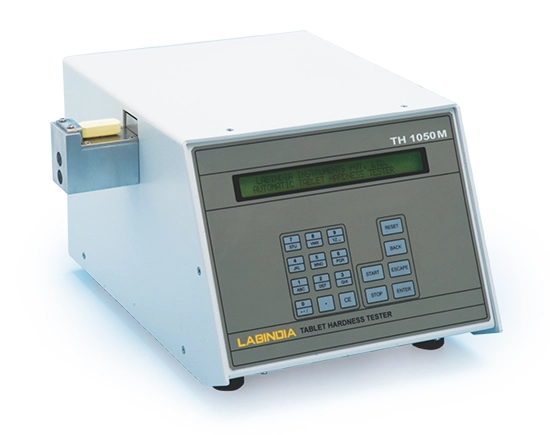

TH 1050 M Single Station

Tablet Hardness tester (TH - 1050M) tablet hardness tester comes with alphanumeric splash waterproof polyester soft keys for keyboard and is equipped with user-interactive software in dialogue mode for the ease of operations. This tablet hardness tester is a perfect entry level model for manual testing of the tablet physical properties. All the five parameters like Thickness, Length, Diameter Hardness and Width can be measured simultaneously.

There is a built in clock and facility for date and time display in Tablet hardness tester TH - 1050M. Automatic run can be performed continuously for up to 99 tablets. Complying to the Pharmacopeias of US/EP/BP/IP.

Standard Features of Hardness Tester TH 1050 M

• Advance Micro-controller based user-friendly state-of-the-art product design with alphanumeric splash waterproof polyester soft keys for keyboard. User interactive software in dialogue mode for ease of operation with protection against invalid entries.

• Single Station Automatic measurement of tablet parameters - Thickness, Width, Diameter/Length, Hardness, Weight.

• Non-Volatile memory storage of 99 methods with parameters with Alphanumeric entries of Sample Name and Identification Number for authentication.

• Automatic run can be performed continuously up to 1-99 tablets. RUN can be re-started on power failure or on System Reset with last run parameters.

• Linear Displacement 0.8mm/sec with fast advance and return movement of breaking arm saves runtime.

• Daily Auto Incremented Run Number and Factory entered CUSTOMER NAME with Instrument Serial Number on report makes system foolproof and GLP complaint.

• Two Tier – a] ADMIN, and b] USER password protection for method editing and Validation. 25 Users can be set with Name and password.

• Built-in Real Time Clock [RTC] for date and time display and on printout.

• Process Stage and Compression Press no. entry, NMT, NLT and Percentage Limit for detected values of Thickness, Diameter/Length & Hardness with Star mark for out of limit values.

• Validation/Calibration protocol with verification for Hardness – 3 point Load Cell calibration with Standard weights and Diameter/Length Calibration with Standard gauges.

• Quick RUN for Independent Thickness, Diameter/Length, Hardness or All parameter measurement in sequence up to 25 sample tablets with GLP information.

• Error indication on display with Audible alarm helps user to trace the problem.

• Printer Compatibility for Deskjet, Inkjet & Dot-matrix printer.

Watch a Video here:

Hardness Tester- Labindia Analytical Instruments Pvt. Ltd. #hardnesstester - YouTube

Visit the LabIndia website for more information:

Tablet Hardness Tester Manufacturers-Labindia Analytical (labindia-analytical.com)

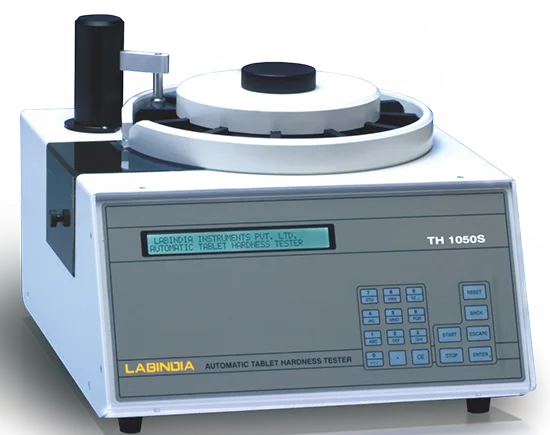

TH 1050 S

The tablet hardness tester TH 1050S has 12 position carousel which measures the thickness, length/diameter, hardness and width of the tablets automatically. The built-in sweeping blades in the 12 Carousel (TH 1050 S) help in removing the broken pieces, debris and dust of tablets that accumulates during the testing. For the sake of safety, a two-tier method of editing and validation is required to be performed by the admin and the user. Through this tablet hardness tester, it is possible to perform a continuous automatic run of up to 1-99 tablets that helps in saving a considerable amount of time of the researcher.

Standard Features of 12 Carousel (TH 1050S)

• Advance Micro-controller based user-friendly state-of-the-art product design with alphanumeric splash waterproof polyester soft keys for keyboard. User interactive software in dialogue mode for ease of operation with protection against invalid entries.

• 12 Position Carousal for Automatic measurement of tablet parameters - Thickness, Length/Diameter & Hardness. The built in Sweeping blades cleans the tablet path for removal of broken pieces, debris & dust.

• Non-Volatile memory storage of 99 methods with parameters with Alphanumeric entries of Sample Name and Identification Number for authentication.

• Automatic run can be performed continuously up to 1-99 tablets. Run can be restarted on power failure.

• Linear Displacement 0.8mm/sec with fast advance and return movement of breaking arm saves runtime.

• Daily Auto Incremented Run Number and Factory entered CUSTOMER NAME with Instrument Serial Number on report system foolproof and GLP complaint.

• Two Tier – a] ADMIN, and b] USER password protection for method editing and Validation. 10 Users can set with Name and password.

• Built-in Real Time Clock [RTC] for date and time display and on printout.

• Ethernet Connectivity by RE01 Module and EDC80 Data capture Software (Optional)

• Quick RUN for Thickness, Length & Hardness or all parameter measurement in sequence up to 25 sample tablets with GLP information.

Watch a Video here:

Hardness Tester- Labindia Analytical Instruments Pvt. Ltd. #hardnesstester - YouTube

Visit the LabIndia website for more information:

Portable Tablet Hardness Tester | 12 Carousel (TH 1050 S) (labindia-analytical.com)

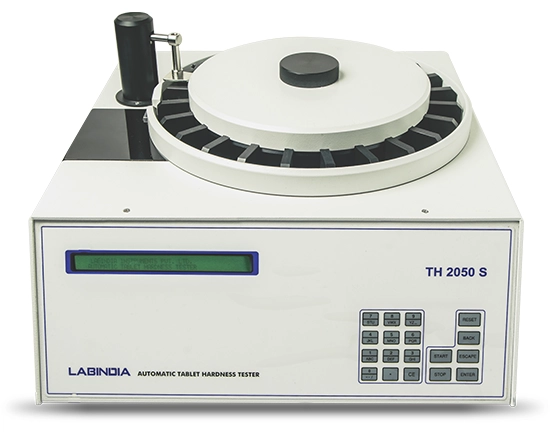

TH 2050 S

The 24 Point Carousel automatically measures the essential parameters of the tablets like the thickness, width, length/diameter and hardness. This tablet hardness tester enables the user to test 20 tablets in a single run which is one of the requirements in the Pharmacopeia. The tablet hardness tester has a large non-volatile data storage memory which stores up to 99 methods along with the user results and validation data.

The print reports of the results, program methods and validation or calibration data are all compliant with the GLP specifications. Linear displacement speed can be selected by the user which gives flexibility.

Standard Features of 24 Point Carousel

• Advance Micro-controller based user-friendly state-of-the-art product design with Alphanumeric keyboard.

• 24 Position Carousel for Automatic measurement of tablet parameters- Width, Thickness, Length/Diameter & Hardness. It fulfills the Pharmacopeial requirement of 20 tablet testing in single run.

• The built in Sweeping blades cleans the tablet path for removal of broken pieces, debris and dust.

• Large Non-Volatile data storage memory: 99 methods, Users Result and Validation data.

• Automatic run can be performed continuously up to 1 - 99 tablets. RUN can be re-started on power failure or on System Reset with last run parameters.

• Two Tier - a] ADMIN, and b] USER password protection for method editing and Validation.

• Validation/Calibration protocol with verification for Hardness - 3 point Load Cell calibration with Standard weights, Width/Length/Diameter & 3 point Thickness Calibration with Standard thickness gauges.

• GLP complaint print reports of Results, Program methods & Validation/Calibration data with built-in Parallel port printer interface.

• Built in dual RS 232 C interface for data transfer for PC & Balance for Sample Tablet weight transfer.

Watch a Video here:

Tablet Hardness Tester at Right Price in India - Get Quote (labindia-analytical.com)

Visit the LabIndia website for more information:

Tablet Hardness Tester at Right Price in India - Get Quote (labindia-analytical.com)

TH 1050 S+

This hardness tester is equipped with user-interactive software in dialogue mode which enables in the ease of operation as well as it provides protection against invalid entries. The design of the Hardness Tester TH 1050 S+ allows it to perform a continuous automatic run of up to 1-100 tablets and it simultaneously measures the different parameter of the tablets. Armed with a linear displacement method, the user can select the speed from 0.4 to 3.2 mm/sec of this tablet hardness tester.

Fast advance and return movement saves time.Plus/minus Tolerance Limit for Pass/Fail criteria with Star mark for out of limit values.

Standard Features of TH 1050+

• Advance Micro-controller based user-friendly state-of-the-art product design with alphanumeric splash waterproof polyester soft keys for keyboard.

• User interactive software in dialogue mode for ease of operation with protection against invalid entries.

• 4 Line X 40 char Wide Display with white backlight.

• 12 Position Carousal for Automatic transfer of tablet to measurement location. Simultaneous measurement of parameter - Thickness, Length/Diameter & Hardness. Facility for Width measurement and Automatic Tablet Weight transfer.

• The built in Sweeper blades for removal of broken pieces, debris & dust from the tablet path.

• Groove for better positioning oblong shape sample tablets.

• Non-Volatile memory storage - 99 methods/ recipes having parameters with easy scroll.

• Alphanumeric entries of Sample Name and Identification/Batch Number for authentication.

• Automatic run can be performed continuously up to 1-100 tablets. Run can be restarted in case of interruption due to power failure.

• Linear Displacement Method with selectable speed 0.4 to 3.2mm/sec

• Fast Advance and Return movement of breaking arm saves test run time.

• Daily Auto Incremented Run Number for authentication of each test run.

• Factory entered CUSTOMER NAME & Instrument Serial Number on Print report data -makes system foolproof and GLP complaint.

• Two Tier Password protection for System Operation a] ADMIN, and b] USER. Protection for Date & Time, Method Editing and Validation.

• 50 Users ID memory having User Name and password with easy scroll.

• Built-in Real Time Clock [RTC] for date and time

Watch a Video here:

Hardness Tester- Labindia Analytical Instruments Pvt. Ltd. #hardnesstester - YouTube

Visit the LabIndia website for more information:

Portable Tablet Hardness Tester TH 1050 S+ | Labindia Analytical (labindia-analytical.co
